Sections &
Elevations
Sections and Elevations are essential components of measured building and site surveys, providing accurate visualisations of buildings and landscapes. While elevations show the external faces of a structure, sections offer vertical slices through a building or site, revealing internal levels and structural relationships.
About This Service
Accurate vertical & external
representations
At Lansdowne Surveys Ltd, we produce precise sections and elevations using advanced surveying technology, including total stations and the Leica RTC360 LiDAR scanner. This ensures our drawings are accurate, reliable, and suitable for planning, design, or construction purposes.

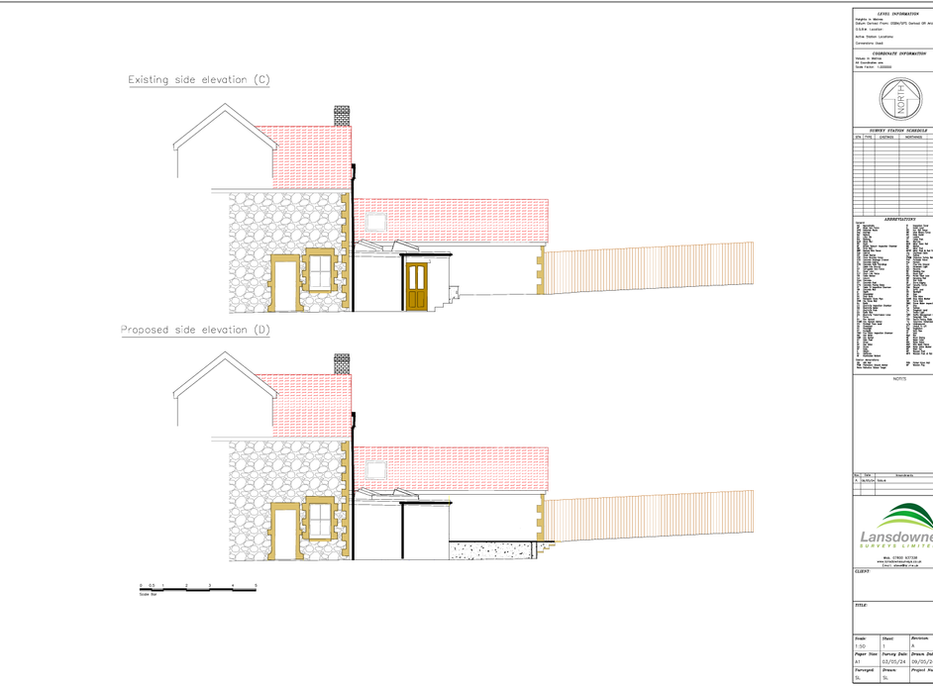

Elevation drawings capture building facades and external finishes, window, door, and roof positions, ground-to-roof levels, and architectural features and detailing. They are invaluable for planning applications, façade refurbishments, and external works.
Section drawings provide insight into the interior of a building or site, showing floor-to-ceiling heights, structural elements such as beams, columns, and walls, roof construction, and internal level changes. Sections are critical for extensions, internal alterations, and understanding spatial relationships within a structure.
Deliverables
Elevation Drawings (DWG & PDF)
Section Drawings (DWG & PDF)
Floor-to-Ceiling Heights
Facade & Fenestration Detail
Roof & Level Sections
Point Cloud Source Data
Need accurate sections or elevations for your project? Contact us for a fast, competitive quote.
Gallery
